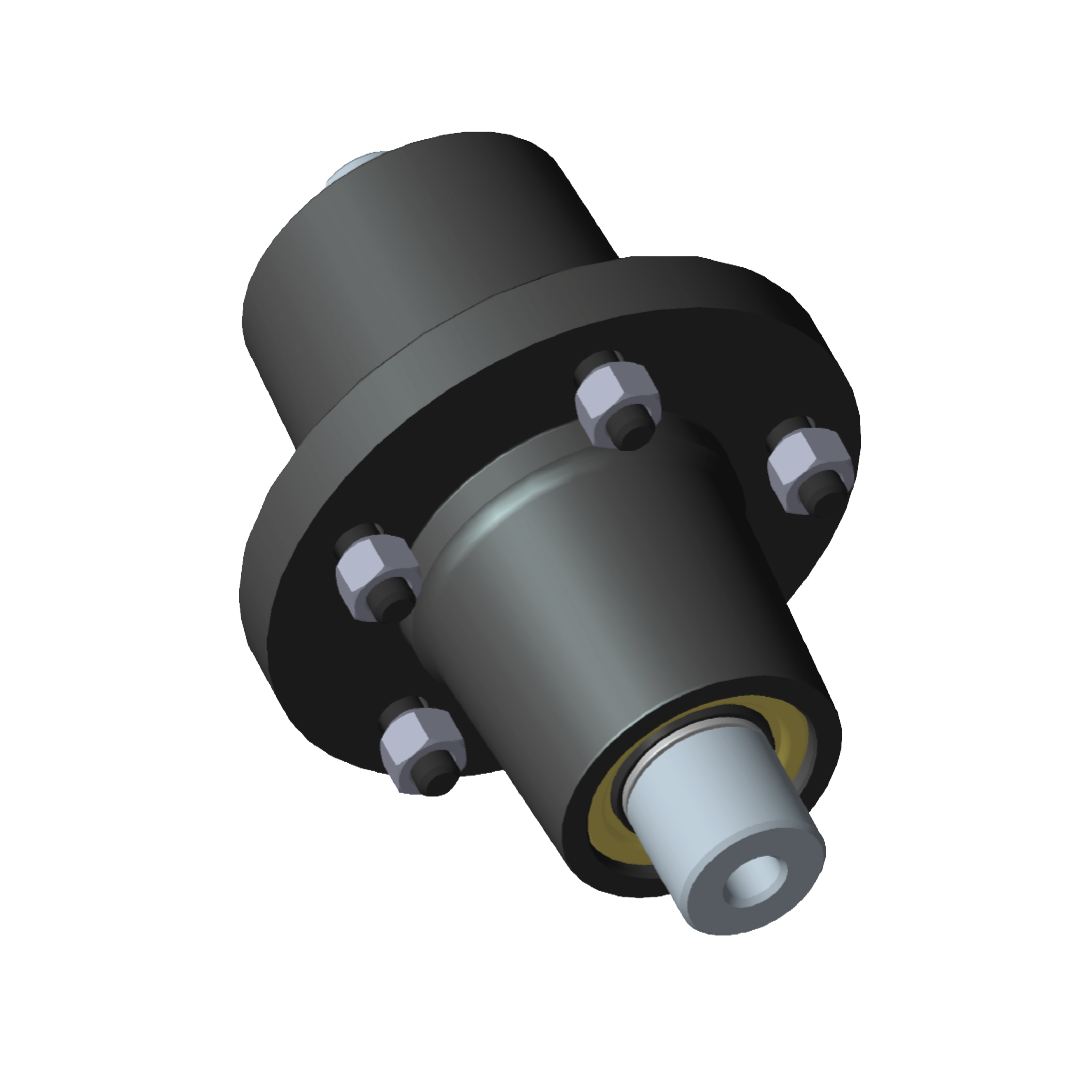

Straddle 525

Model # 525 Cap (LBS) 3000 Hub Assy L525200 Hub Sub Assy L525300 Inner Cup 14276P702216 Outer Cup 14276P702216 Inner Cone 14136A P752318 Bore Dia 1.38 Outer Cone 14136A P752318 Bore Dia2 1.38 Hub Cap - Wheelbolt - Stud P151401 Nut P201602 Seal CR17617 P602106 Wear Sleeve - A 5 B 1.82 C 1.13 D 2.44 Spindle Style STRAIGHT Model No 525 Material CDS Material Dia 1-3/4" Spindle Assy LS8511 Machined Spindle LS9511 Washer - Slotted Nut P251740 Cotter Pin - Overall Length 10-1/2" Thread 1-1/4"-12 Seal Dia 1-3/4" OnBearing Cone
Straddle 525
