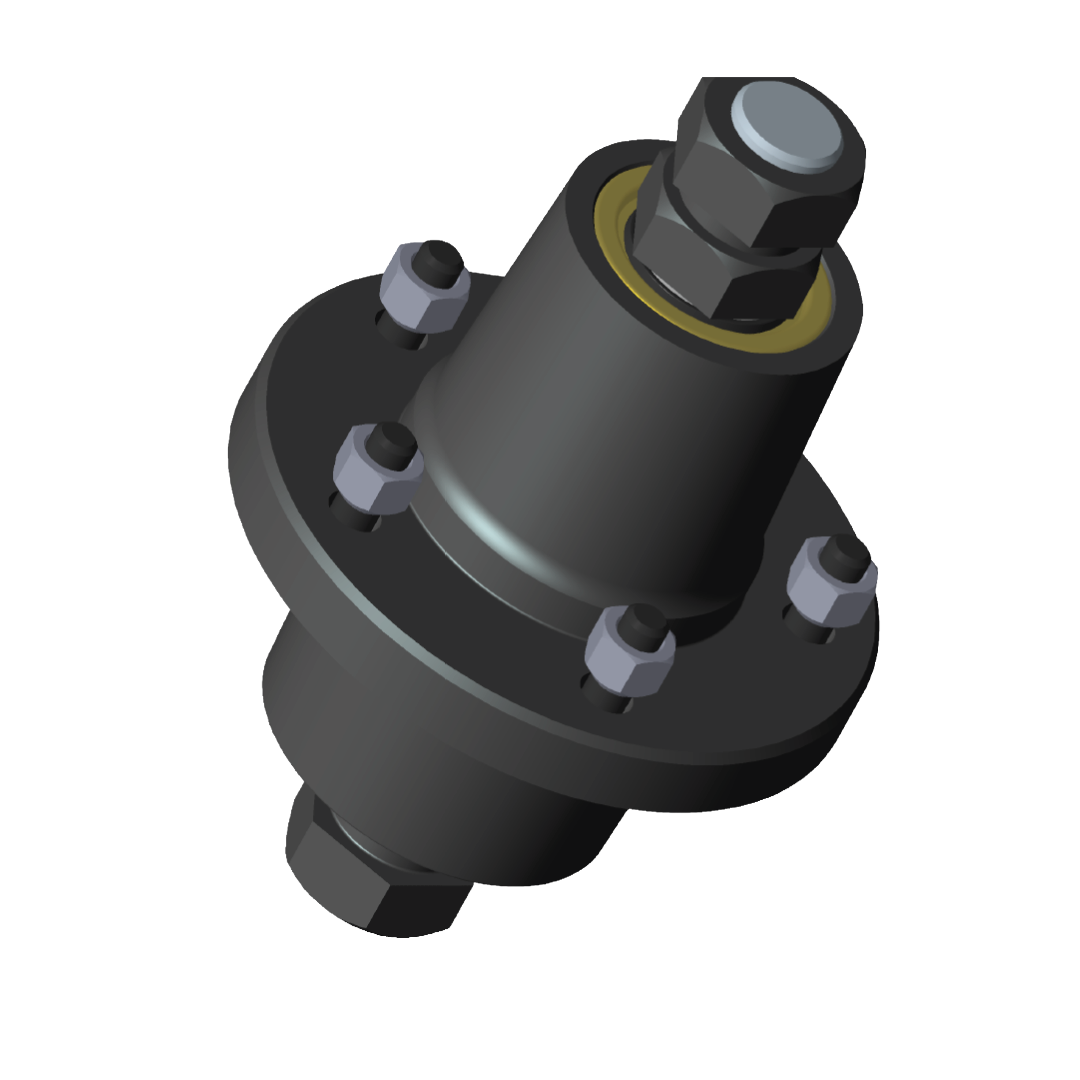

Straddle 520

Model # 520 Cap (LBS) 3000 Hub Assy L520200 Hub Sub Assy L520300 Inner Cup 14276P702216 Outer Cup 14276P702216 Inner Cone 14136A P752318 Bore Dia 1.38 Outer Cone 14136A P752318 Bore Dia2 1.38 Hub Cap - Wheelbolt - Stud P151404 Nut P201602 Seal CR17617 P602106 Wear Sleeve - A 5 B 1.03 C 1.03 D 2.38 Spindle Style STRAIGHT Model No 520 Material CDS Material Dia 1-3/8" Spindle Assy LS5229 Machined Spindle LS7229 Washer - Slotted Nut P251707P251724 Cotter Pin - Overall Length 10" Thread 1-1/4"-12 Seal Dia 1-3/4" OnBearing Cone
Straddle 520
