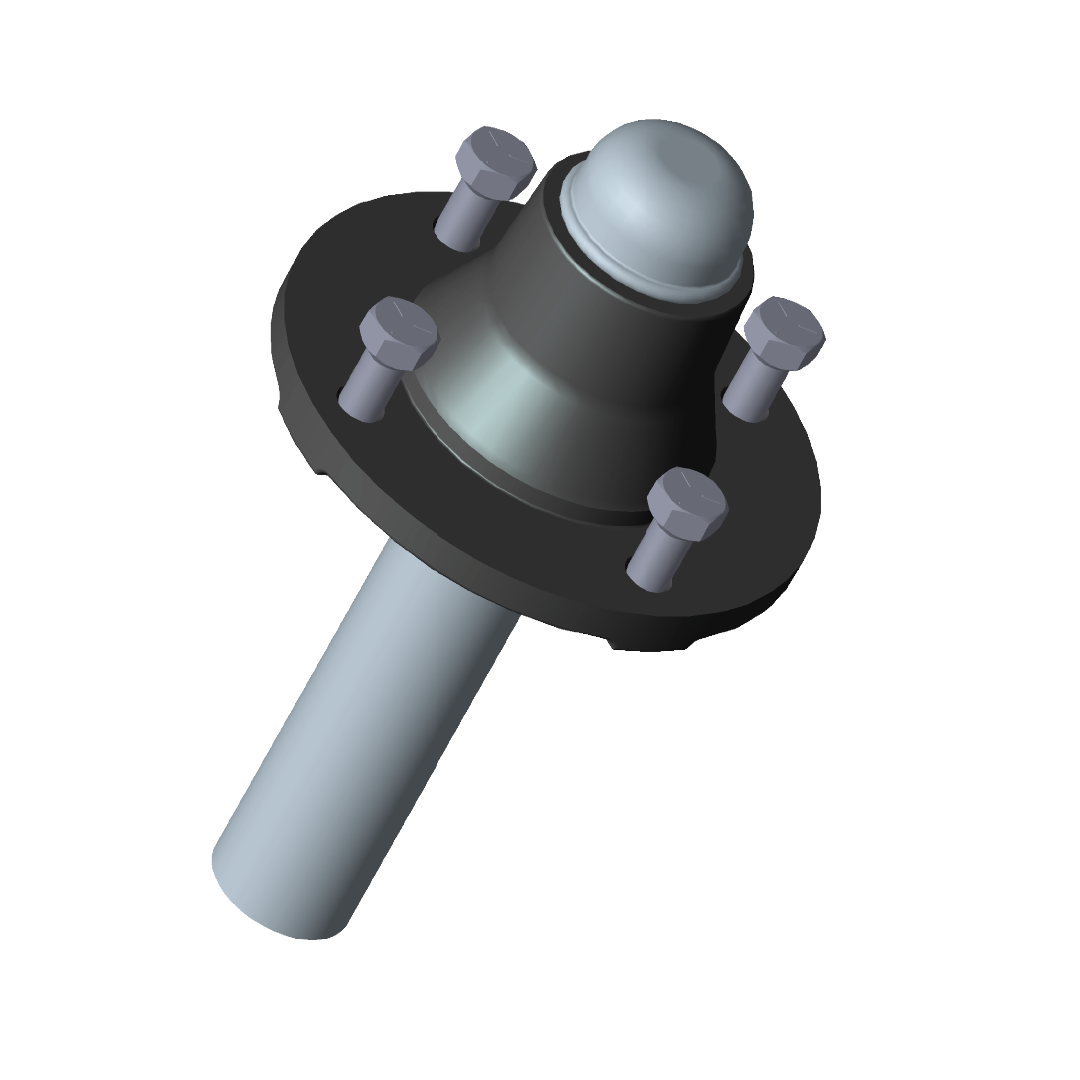

Coulter 669

Model # 669 Cap (LBS) 1250 Hub Assy L669200 Hub Sub Assy L669300 Inner Cup LM67010 P702203 Outer Cup LM11910 P702210 Inner Cone LM67048 P752311 Bore Dia 1.25 Outer Cone LM11949 P752305 Bore Dia2 0.75 Hub Cap P502051 Wheelbolt P101301 Stud - Nut - Seal TC15233VHP602149 Wear Sleeve - A 1.16 B 0.97 C 0.88 D 0.37 Spindle Style STRAIGHT Model No 669 Material CDS Material Dia 1-5/8" Spindle Assy LS5106 Machined Spindle LS7106 Washer P301801 Slotted Nut P251701 Cotter Pin P401905 Overall Length 10" Thread 5/8"- 18 Seal Dia 1-1/2"
Coulter 669
