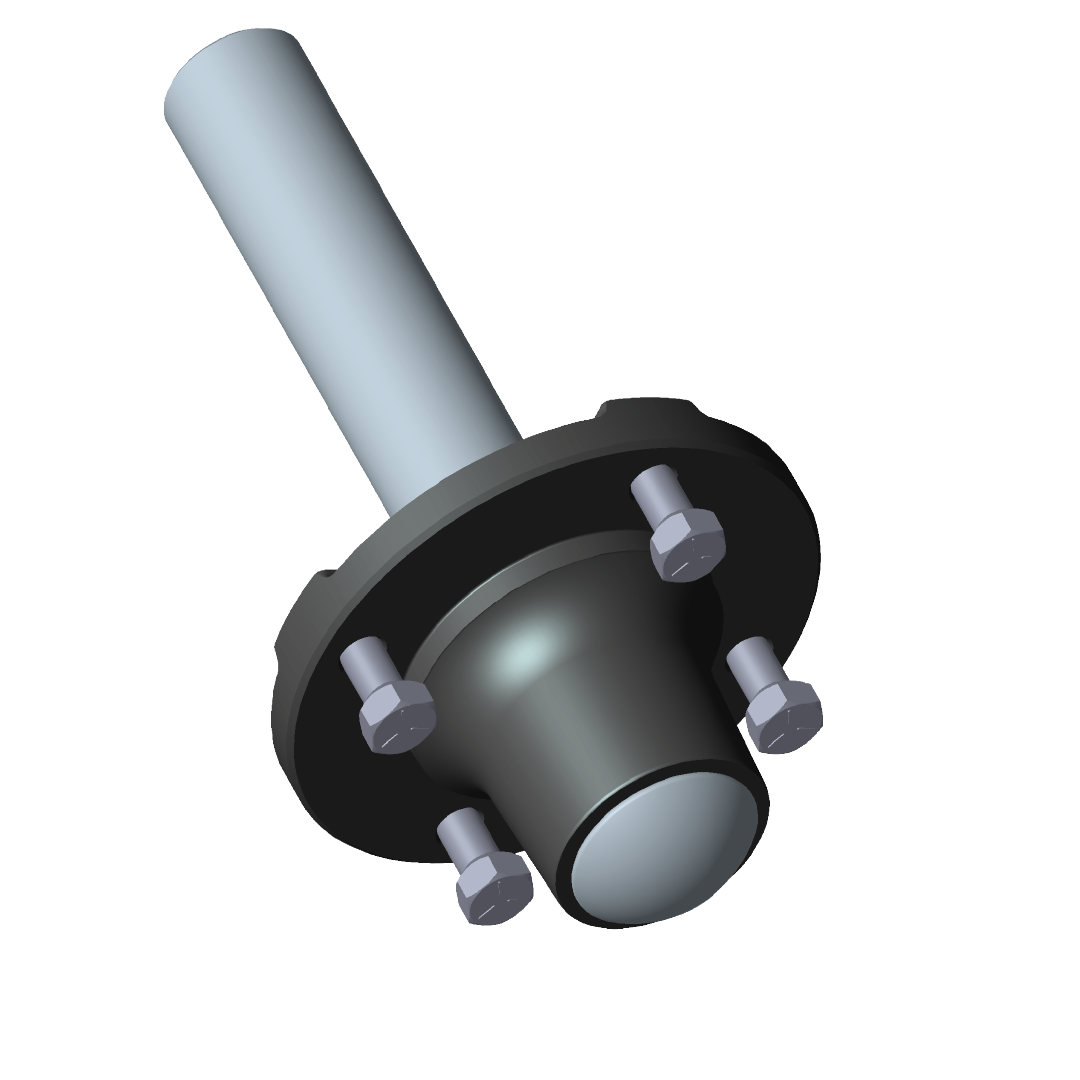

Coulter 633

Model # 633 Cap (LBS) 1500 Hub Assy L633206 Hub Sub Assy L633306 Inner Cup LM67010 P702203 Outer Cup LM11910 P702210 Inner Cone LM67048 P752311 Bore Dia 1.25 Outer Cone LM11949 P752305 Bore Dia2 0.75 Hub Cap P502003 Wheelbolt P101301 Stud - Nut - Seal CR14974 P602111 Wear Sleeve - A 2 B 1 C 1.12 D 0.38 Spindle Style STRAIGHT Model No 633 Material CDS Material Dia 1-5/8" Spindle Assy LS5101 Machined Spindle LS7101 Washer P301802 Slotted Nut P251703 Cotter Pin P401905 Overall Length 9-5/16" Thread 3/4"-16 Seal Dia 1-1/2"
