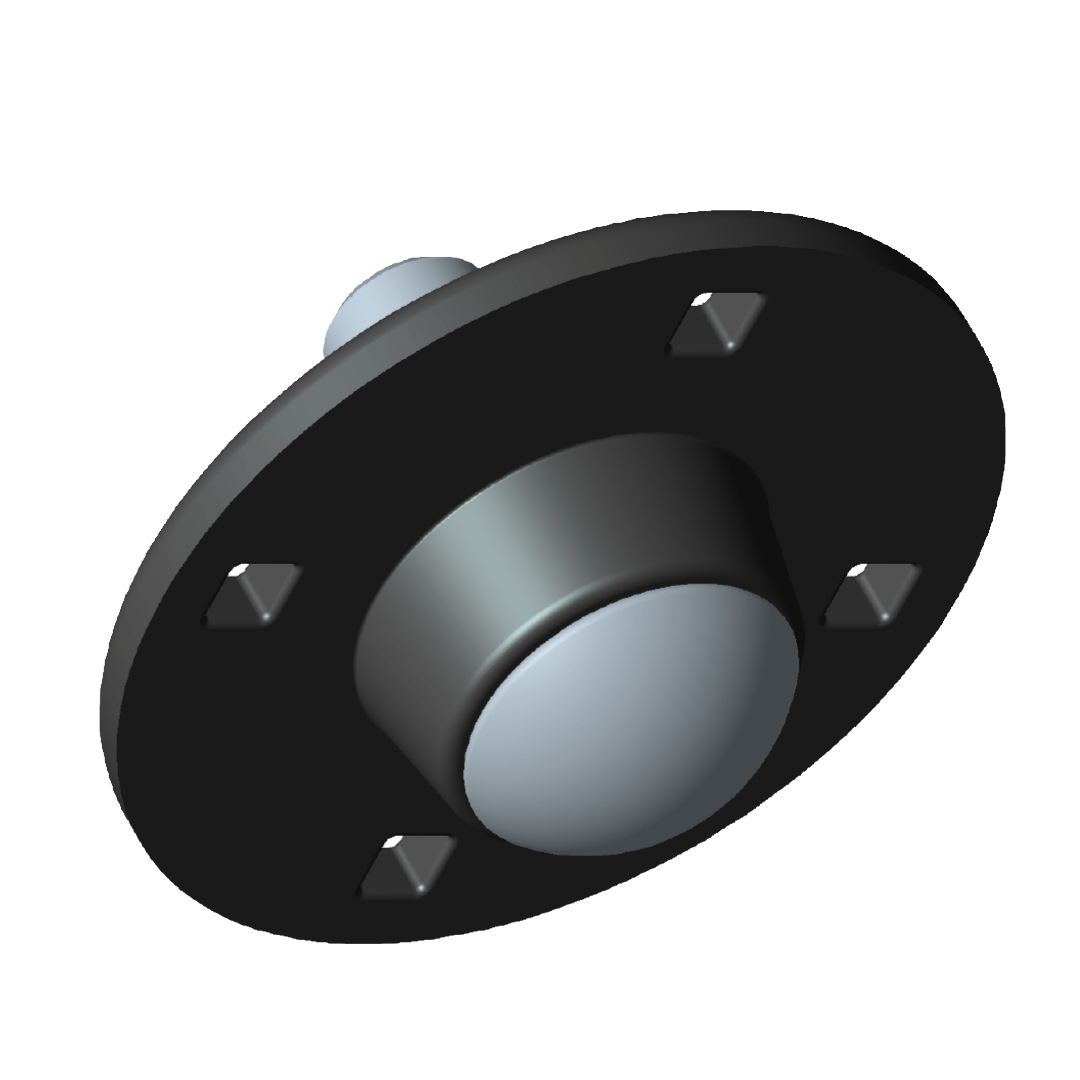

Coulter 432

Model # 432 Cap (LBS) 1200 Hub Assy L432200 Hub Sub Assy L432300 Inner Cup LM67010 P702203 Outer Cup LM67010P702203 Inner Cone LM67048 P752311 Bore Dia 1.25 Outer Cone LM67048P752311 Bore Dia2 1.25 Hub Cap P502056 Wheelbolt - Stud - Nut - Seal CR16069 P602105 Wear Sleeve - A 0.81 B 1 C 0.94 D 0.64 Spindle Style STRAIGHT Model No 432 Material CDS Material Dia 1-5/8" Spindle Assy LS5581 Machined Spindle LS7581 Washer P301860 Slotted Nut P251701 Cotter Pin P401916 Overall Length 4-1/2" Thread 5/8"-18 Seal Dia 1-5/8"
Coulter 432
