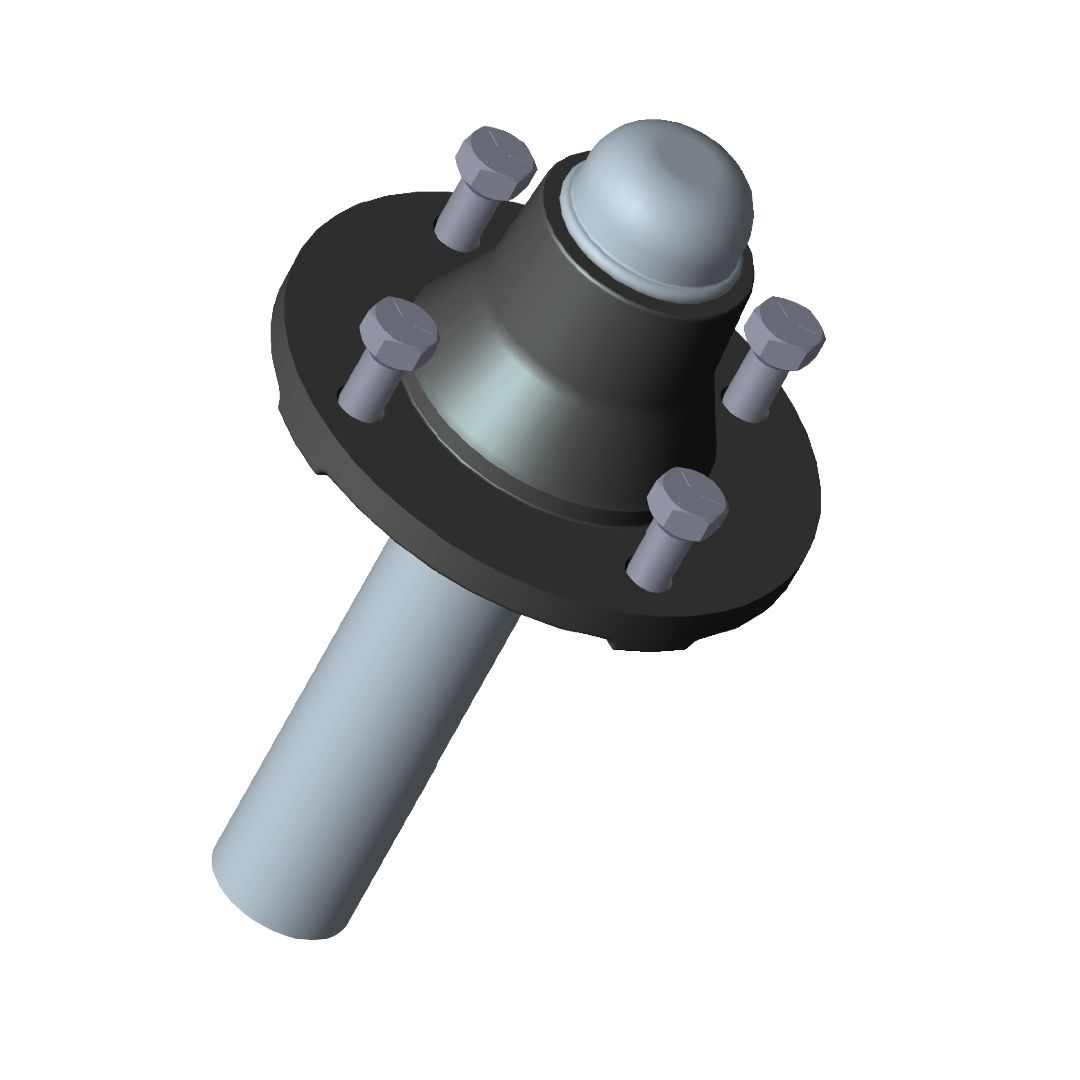

Coulter 124

Model # 124 Cap (LBS) 1250 Hub Assy L124200 Hub Sub Assy L124300 Inner Cup LM67010 P702203 Outer Cup LM11910 P702210 Inner Cone LM67048 P752311 Bore Dia 1.25 Outer Cone LM11949 P752305 Bore Dia2 0.75 Hub Cap P502051 Wheelbolt P101301 Stud - Nut - Seal CR16069 P602105 Wear Sleeve - A 1.16 B 0.94 C 0.96 D 0.38 Spindle Style STRAIGHT Model No 124 Material CDS Material Dia 1-5/8" Spindle Assy LS5110 Machined Spindle LS7110 Washer P301801 Slotted Nut P251701 Cotter Pin P401905 Overall Length 10" Thread 5/8"- 18 Seal Dia 1-5/8"
Coulter 124
