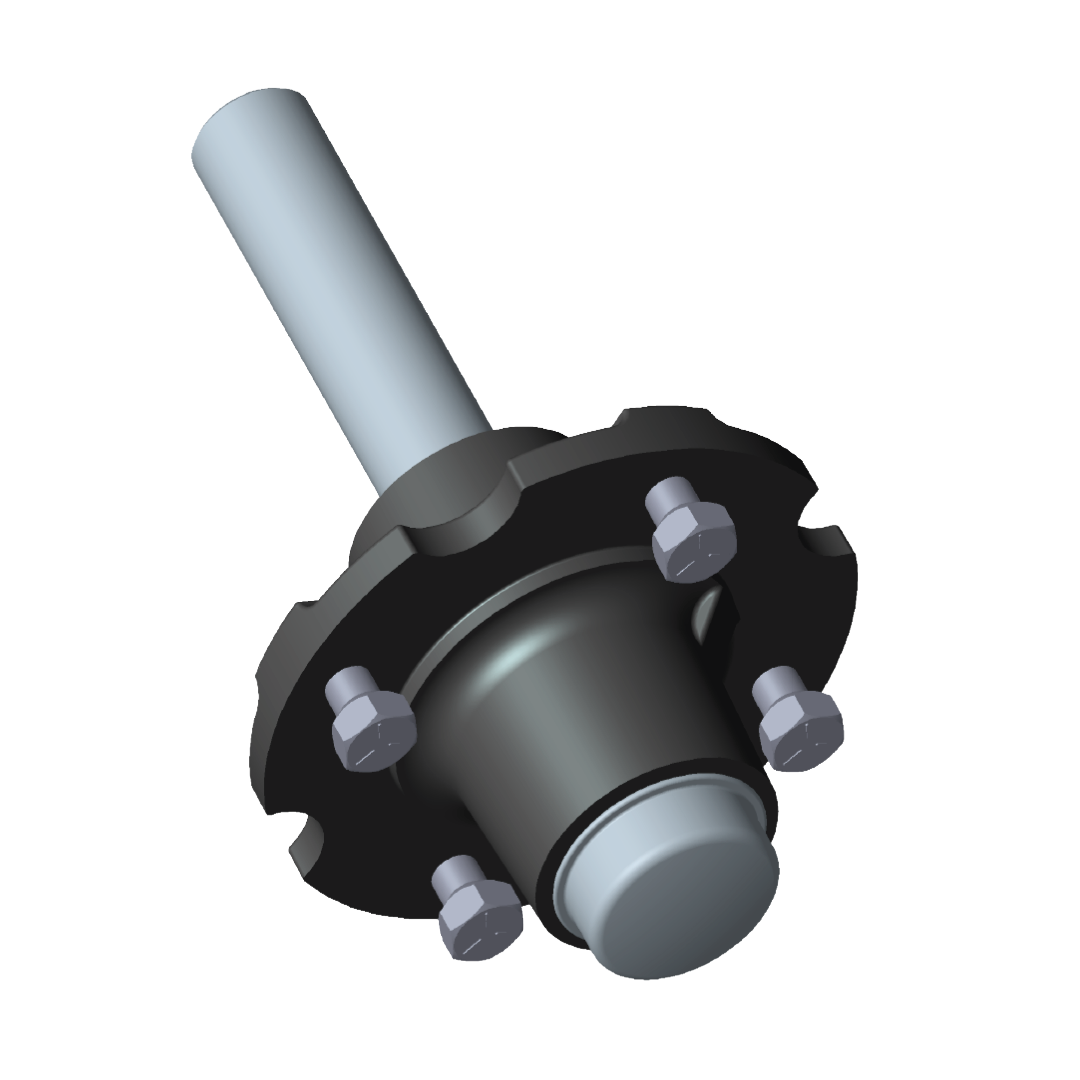

Coulter 104

Model # 104 Cap (LBS) 1000 Hub Assy L104200 Hub Sub Assy L104300 Inner Cup L44610 P702215 Outer Cup L44610 P702215 Inner Cone L44643 P752316 Bore Dia 1 Outer Cone L44643 P752316 Bore Dia2 1 Hub Cap P502010 Wheelbolt P101301 Stud - Nut - Seal CR12411 P602123 Wear Sleeve - A 2.406 B 0.875 C 1.094 D 1.25 Spindle Style STRAIGHT Model No 104 Material CDS Material Dia 1-1/4" Spindle Assy LS8163 Machined Spindle LS9163 Washer P301802 Slotted Nut P251703 Cotter Pin P401901 Overall Length 8-1/2" Thread 3/4"-16 Seal Dia 1-1/4"
