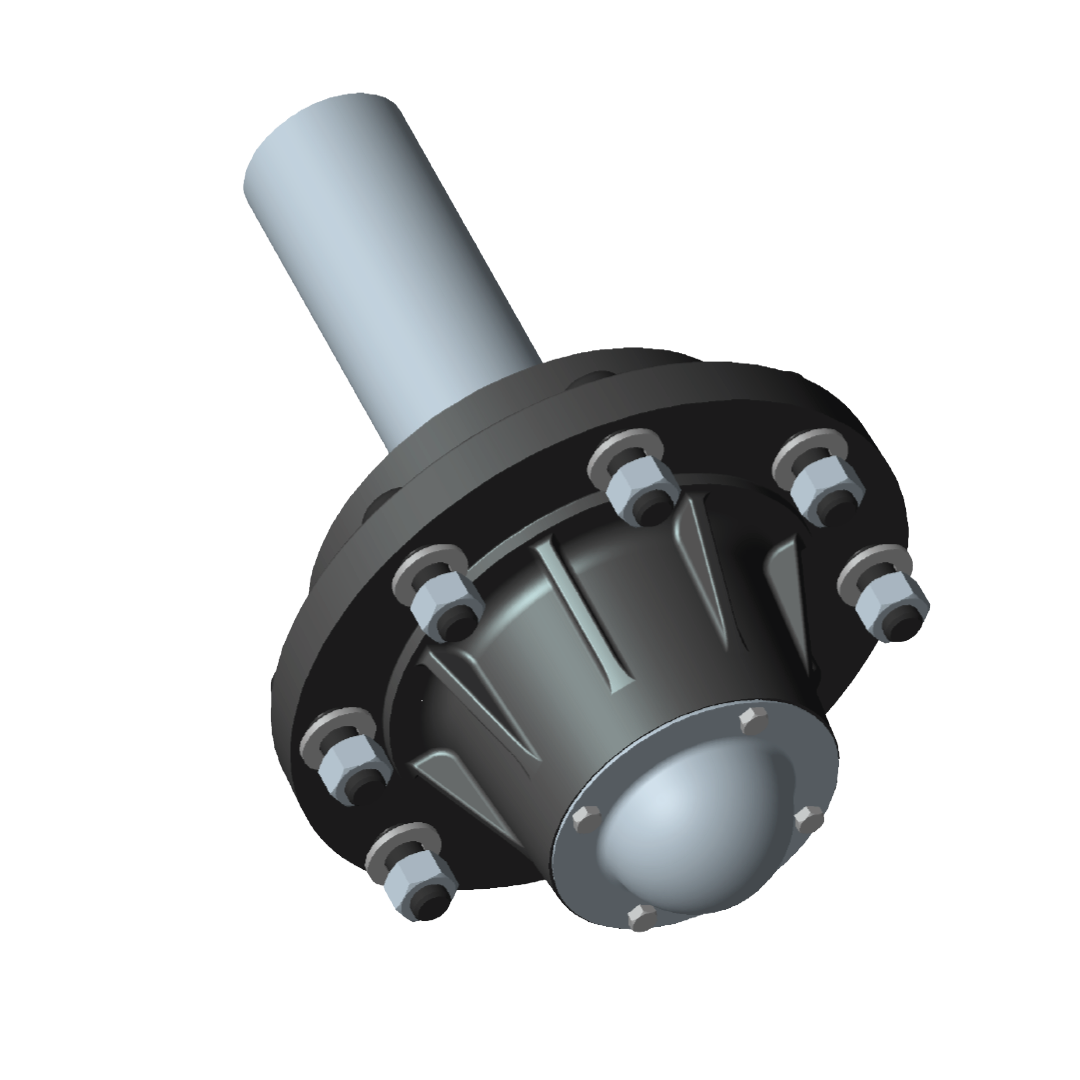

8 Bolt Hub 801

Model # 801 Cap (LBS) 10000 Hub Assy L801200 Hub Sub Assy L801300 Inner Cup 3920P702279 Outer Cup 3920P702279 Inner Cone 3984P752388 Bore Dia 2.63 Outer Cone 3979P752387 Bore Dia2 2.25 Hub Cap P502016 Wheelbolt - Stud P151409 Nut P201636 Seal CR32501P602260 Wear Sleeve - A 4.25 B 1.66 C 1.62 D 1.6 Spindle Style STRAIGHT Model No 801 Material CDS Material Dia 3-1/4" Spindle Assy LS8057 Machined Spindle LS9057 Washer P301856 Slotted Nut P251720 Cotter Pin P401914 Overall Length 18" Thread 1-1/2"-12 Seal Dia 3-1/4"
8 Bolt Hub 801
