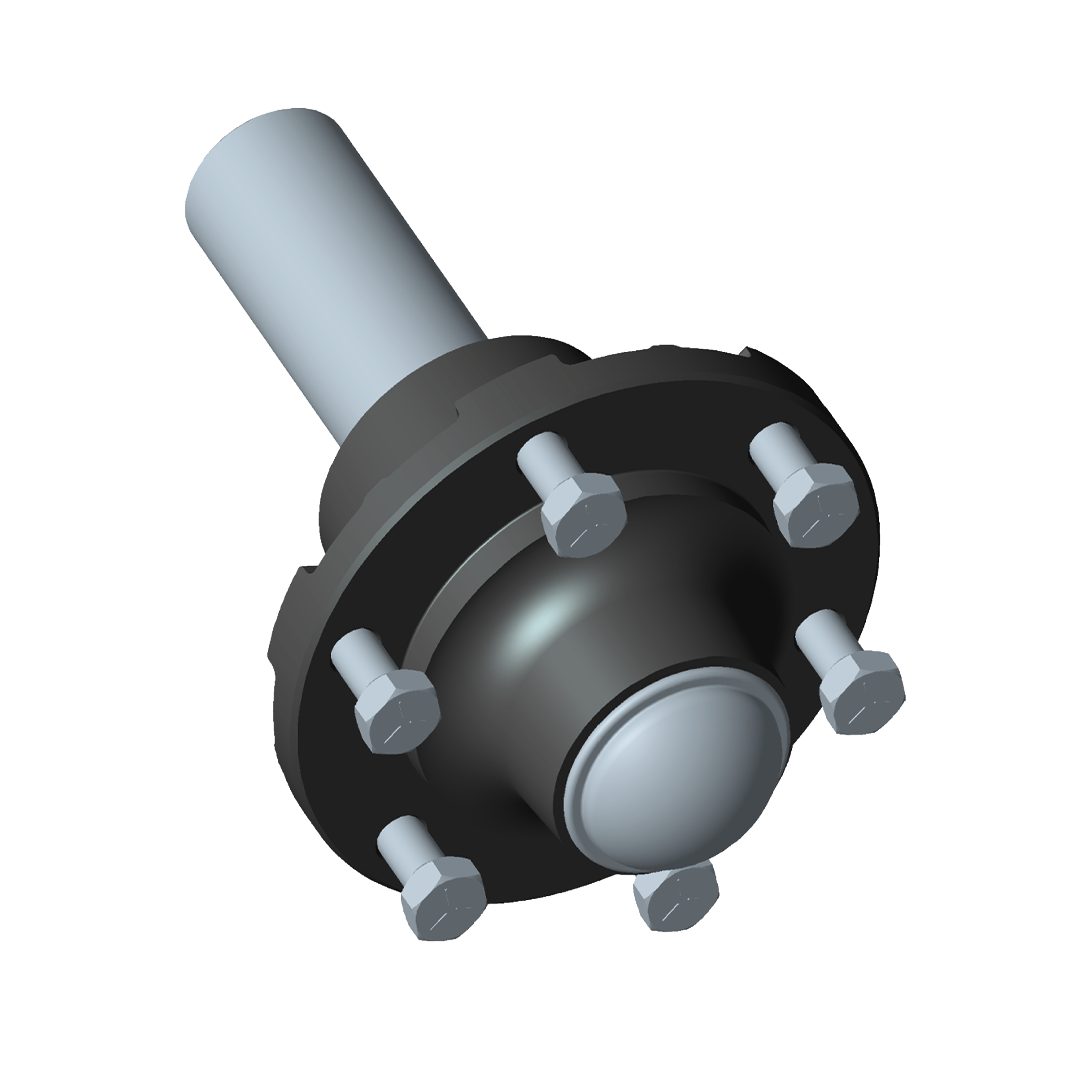

6 Bolt Hub 356

Model # 356 Cap (LBS) 3500 Hub Assy L356200 Hub Sub Assy L356300 Inner Cup LM501310P702204 Outer Cup LM67010P702203 Inner Cone LM501349P752306 Bore Dia 1.62 Outer Cone LM67048P752311 Bore Dia2 1.25 Hub Cap P502026 Wheelbolt P101303 Stud - Nut - Seal CR20044P602114 Wear Sleeve - A 2.84 B 1.44 C 0.94 D 1.59 Spindle Style STRAIGHT Model No 356 Material CDS Material Dia 2 Spindle Assy LS5113 Machined Spindle LS7113 Washer P301803 Slotted Nut P251703 Cotter Pin P401901 Overall Length 12" Thread 3/4"-16 Seal Dia 2"
